Paulmann 702.56 ( 70256 ) — Paulmann:

Описание

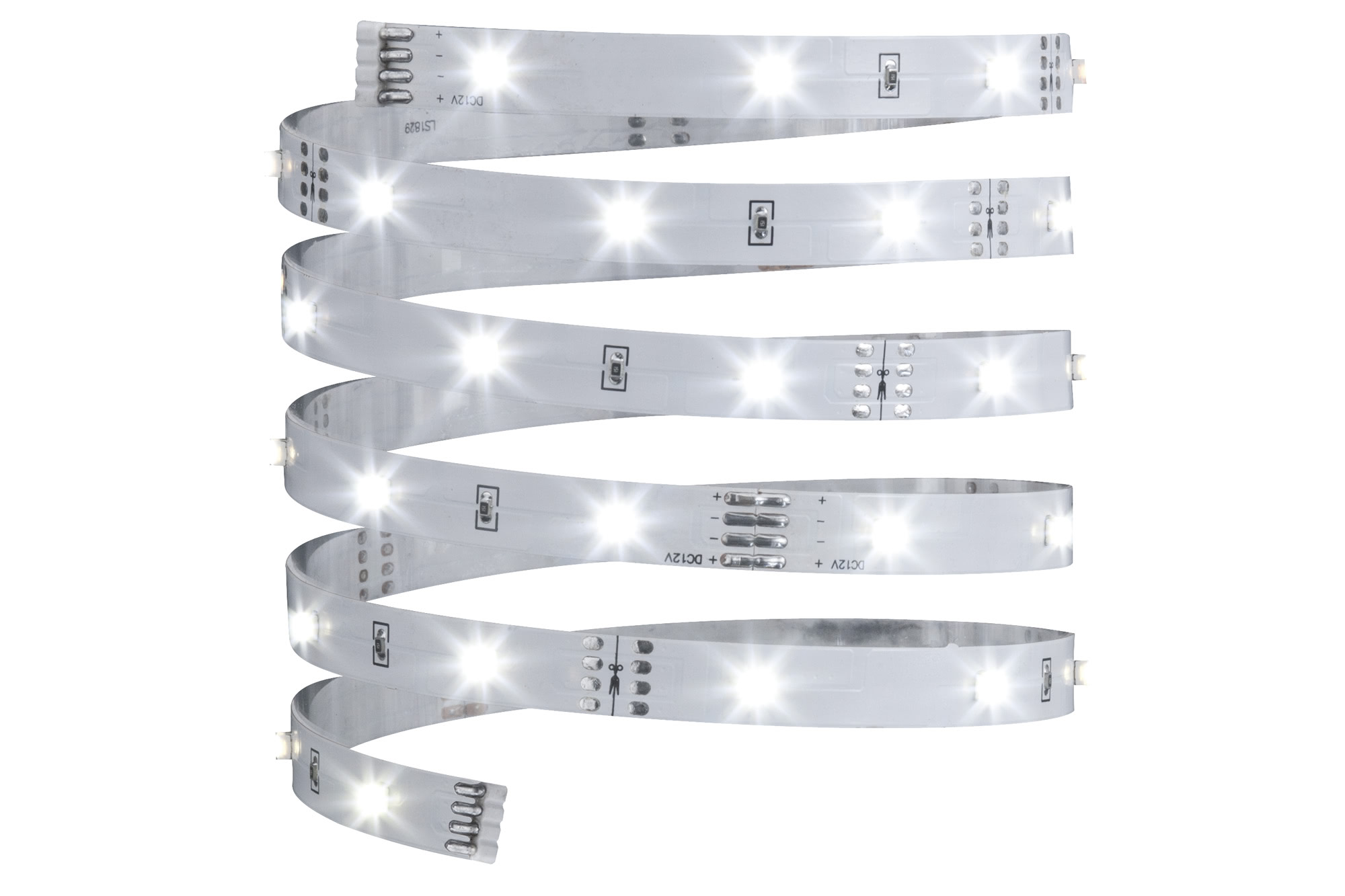

YourLED ECOUncoated YourLED ECO LED strip in neutral white light colour for decorative ambient and workplace lighting. Easy installation by means of adhesive backing and plug-in system. Shortened ECO strips can be reused by means of accessories. Please select the required power supply based on the total strip length. ARTICLE 70256 ( 702.56 ) EAN 1 Beam angle 120 В° Bemessungs-/Nutzlichtstrom 450 lm Colour White Depth 10,5 mm Dimensions (Height x Width x Depth) H: 2,5 T: 10,5 mm Dimmable Yes Farbtemperatur 4000 K, 4.000 K Height 2,5 mm Inclusive lamp Yes Installation site Universal Installation site (recommendation) Universal Length 3 m LГ¤nge 3 m MM symbol MM symbol Material Metal Number of LED"s per meter 30 Number of component parts 1x Operating voltage DC 12 V Protection class Protection class III Rated life time 30000 h Rated luminous flux (Lumen) 450 lm Rated power 7,2 W Technique LED Technology LEDВидео светильника Paulmann 70256 "> Video Видео светильника Paulmann 70256 WEEE-Reg.-No DE 39236390 Width 3000 mm ZГјndzeit < 0,0 s Color White Color temp. 4000 K Component parts 6,8 W Life 30.000 h Lifetime 30.000 h Marketing type Individual components Plug-and-socket connector Plug-and-socket connector Rated beam angle 120 В° Starting time < 0,0 s Useful luminous flux 540 lm Watt 7,2 W Инструкция Установка светильника Paulmann 702.56 P2015 182 страница P2019 193 страница 1730 EURO 70440 Corner Profil 100 cm Grey, plastic 70439 Corner Profil 200 cm Grey, plastic 70410 Floor profile with diffuser 100cm anodised aluminium, satin, aluminium/plastic 70409 Floor profile with diffuser 200cm anodised aluminium, satin, aluminium/plastic 70201 YourLED power supply, IP65 60 W grey, black, plastic 70200 YourLED power supply, 48 W grey, black, plastic 70199 YourLED power supply, 15 W grey, black, plastic 70440 Corner Profil 100 cm Grey, plastic 70439 Corner Profil 200 cm Grey, plastic 70410 Floor profile with diffuser 100cm anodised aluminium, satin, aluminium/plastic 70409 Floor profile with diffuser 200cm anodised aluminium, satin, aluminium/plastic 70268 Duo Profil 1m anodised aluminium, aluminium 70267 Duo Profil 2m anodised aluminium, aluminium 70262 Delta Profil with diffusor 1m anodised aluminium, satin, aluminium/plastic 70261 Delta Profil with diffusor 2m anodised aluminium, satin, aluminium/plastic 70810 Square Profile with diffuser 2m Aluminium anodised 70809 Square Profile with diffuser 1m Aluminium anodised 70490 YourLED ECO Clip-to-YourLED connector White, 2 pc. set 70489 YourLED ECO Clip-to-Clip Connector, set of 2 white, plastic 70488 YourLED ECO Clip-Connector, set of 2 white, plastic 70487 YourLED flat connector, can be shortened, white 5m 70486 YourLED flat connector, can be shortened, white 3m 70461 YourLED Dimm/Switch Controller with IR remote control, white 70452 YourLED dimming/switch amplifier aluminium matt, metal 70410 Floor profile with diffuser 100cm anodised aluminium, satin, aluminium/plastic 70409 Floor profile with diffuser 200cm anodised aluminium, satin, aluminium/plastic 70334 YourLED corner connector, set of 4 white, black, plastic 70268 Duo Profil 1m anodised aluminium, aluminium 70262 Delta Profil with diffusor 1m anodised aluminium, satin, aluminium/plastic 70261 Delta Profil with diffusor 2m anodised aluminium, satin, aluminium/plastic 70251 YourLED connection cable 5 m white, plastic 70216 YourLED Eco clip connector set, 2 pc. white, plastic 70215 YourLED connecting cable, 10 cm white, plastic 70204 YourLED connecting cable, 100 cm white, plastic 70201 YourLED power supply, IP65 60 W grey, black, plastic 70200 YourLED power supply, 48 W grey, black, plastic 70199 YourLED power supply, 15 W grey, black, plastic 404070203 YourLED plug-connectors spare part if lost or in case of special system combinationsRU DE EN FR ES IT WWW.paulman.ru
