Furniture Luminaires

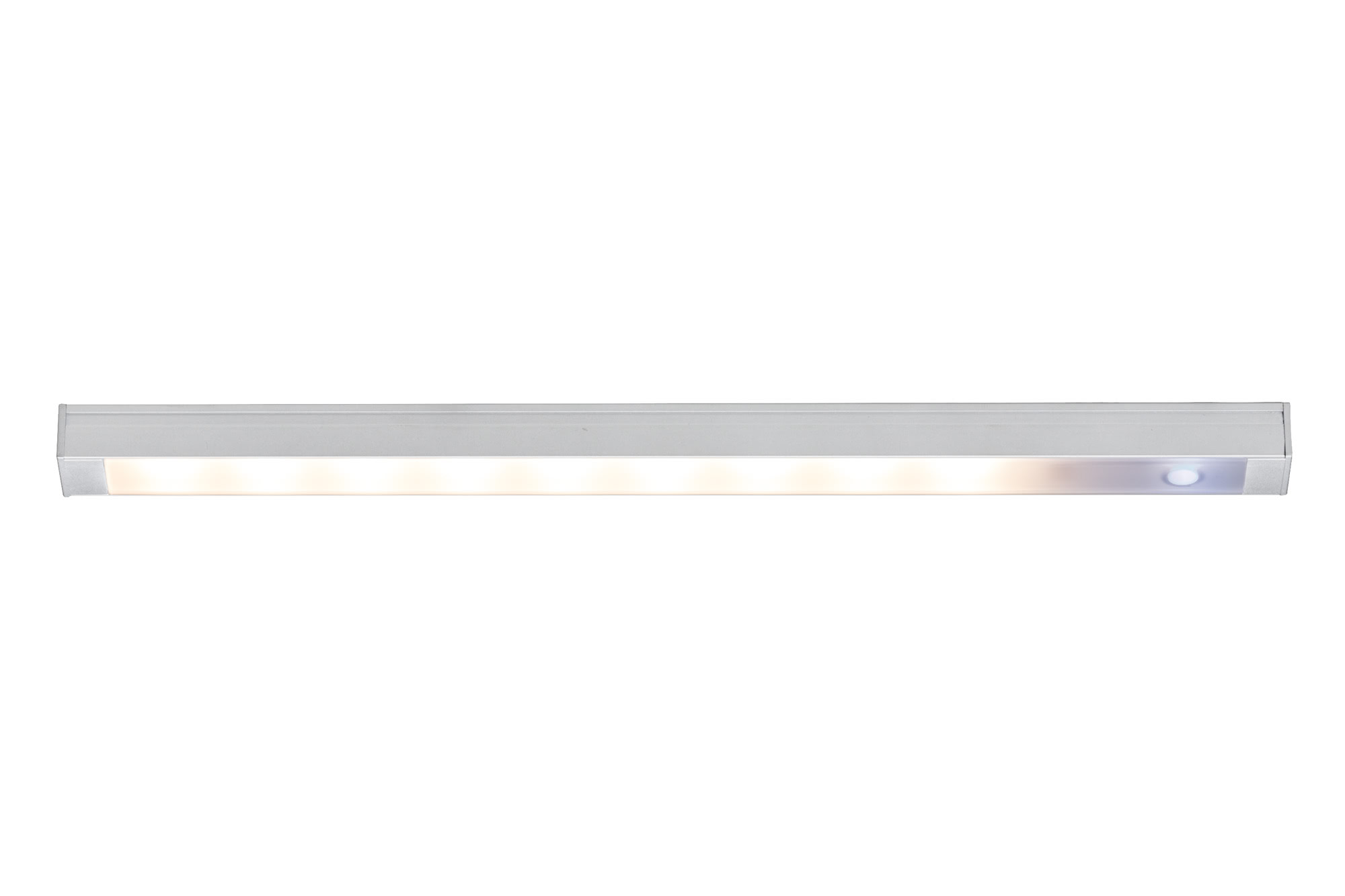

The LED light bar JetLine offers pure function and ideal light. The high-quality aluminium profile is mounted easily with clip holders. The illuminated touch switches, which is also easy to find in the dark, are convenient.

  ARTICLE    70401 ( 704.01 )
  EAN          0
  Beam angle    120 В°
  Bemessungs-/Nutzlichtstrom    170 lm
  Colour    Matt aluminium
  Dimensions (Height x Width x Depth)    H: 14 x B: 260 x T: 17,5 mm
  Dimmable    No
  Farbtemperatur    2700 K, 2.700 K
  Inclusive lamp    Yes
  Installation site (recommendation)    Installation on cabinet
  MM symbol    MM symbol
  Material    Alu, Plastic
  Nennlichtstrom (Lumen)    170 lm
  Number of LED"s per meter    NULL
  Number of component parts    1x
  Plug    Europlug (Typ C-CEE 7/16)
  Power consumption    4,8 W
  Rated life time    20000 h
  Rated luminous flux (Lumen)    170 lm
  Rated power    3,5 W
  Sensors    Touch switch
  Technique    LED
  Technology    LED
  Transformer depth    80 mm
  Transformer height    19 mm
  Transformer power    3,6 VA
  Transformer width    39 mm
Видео светильника Paulmann 70401  ">  Video    Видео светильника Paulmann 70401
  WEEE-Reg.-No    DE 39236390
  ZГјndzeit <    0,0 s
  Color temp.    2700 K
  Component parts    3,5 W
  Life    20.000 h
  Lifetime    20.000 h
  Marketing type    Set
  Operating voltage    230/12 V
  Plug-and-socket connector    Plug-and-socket connector
  Protection class    Protection class II
  Rated beam angle    120 В°
  Starting time <    0,0 s
  Useful luminous flux    170 lm
  Инструкция    Установка светильника Paulmann 704.01
  P2015    208 страница
  P2019    236 страница
