Paulmann 704.07 ( 70407 ) — Paulmann:

Описание

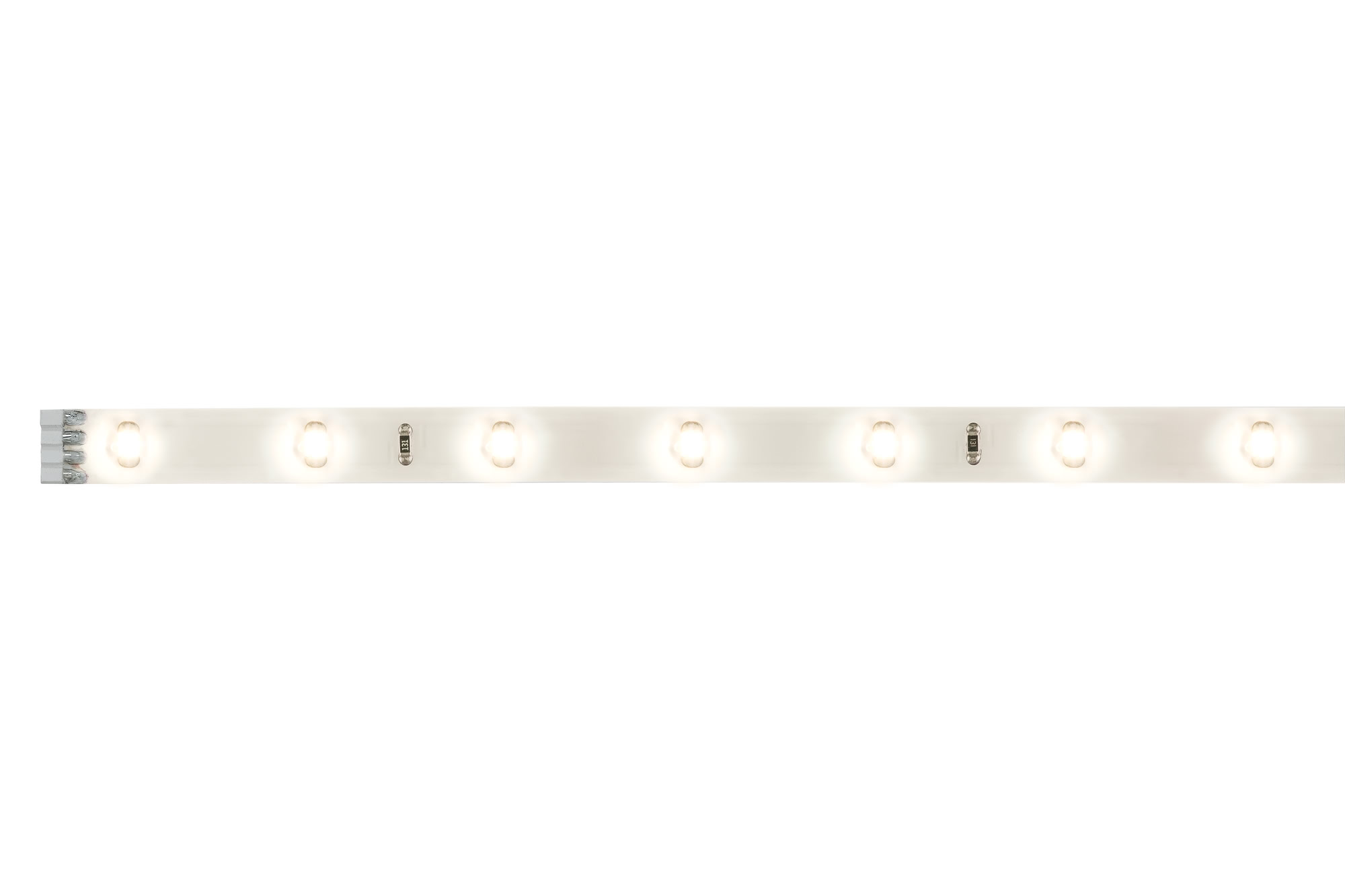

YourLEDCoated YourLED LED strips in warm white light colour for decorative room illumination and practical use. Easy installation thanks to adhesive backing and plug-in system. Optional splash protection via coating and shrink tube sealing at connection points (high shrinkage properties, internally sealed with hot-melt adhesive). Please select the required power supply based on the total strip length. ARTICLE 70407 ( 704.07 ) EAN 0 Beam angle 120 В° Colour White Depth 10,5 mm Dimensions (Height x Width x Depth) H: 3 x B: 2.925 x T: 10,5 mm Dimmable Yes Farbtemperatur 3000 K, 3.000 K Height 3 mm IP protection IP44 Incandescent Equivalent 47 W Inclusive lamp Yes Installation site Universal Installation site (recommendation) Universal Length 0,97 m MM symbol MM symbol Material Plastic Number of LED"s per meter 121 Number of component parts 3x Operating voltage DC 12 V Protection class Protection class III Rated life time 30000 h Rated luminous flux (Lumen) 585 lm Rated power 3,12 W Saving-wattage 47 Technique LED Technology LEDВидео светильника Paulmann 70407 Видео светильника Paulmann 70407 "> Video Видео светильника Paulmann 70407 Видео светильника Paulmann 70407 WEEE-Reg.-No DE 39236390 Width 2925 mm ZГјndzeit < 0,0 s Color White Color temp. 3000 K Component parts 3 W Life 30.000 h Lifetime 30.000 h Marketing type Individual components Plug-and-socket connector Plug-and-socket connector Rated beam angle 120 В° Starting time < 0,0 s Useful luminous flux 795 lm Watt 3x3,12 W Инструкция Установка светильника Paulmann 704.07 P2015 192 страница P2019 213 страница 2812 EURO 70440 Corner Profil 100 cm Grey, plastic 70439 Corner Profil 200 cm Grey, plastic 70410 Floor profile with diffuser 100cm anodised aluminium, satin, aluminium/plastic 70409 Floor profile with diffuser 200cm anodised aluminium, satin, aluminium/plastic 70490 YourLED ECO Clip-to-YourLED connector White, 2 pc. set 70487 YourLED flat connector, can be shortened, white 5m 70486 YourLED flat connector, can be shortened, white 3m 70461 YourLED Dimm/Switch Controller with IR remote control, white 70452 YourLED dimming/switch amplifier aluminium matt, metal 70334 YourLED corner connector, set of 4 white, black, plastic 70251 YourLED connection cable 5 m white, plastic 70247 YourLED water protection shrinking hose 15 cm, transparent 70215 YourLED connecting cable, 10 cm white, plastic 70204 YourLED connecting cable, 100 cm white, plastic 404070203 YourLED plug-connectors spare part if lost or in case of special system combinationsRU DE EN FR ES IT WWW.paulman.ru
