LED Recessed Downlights

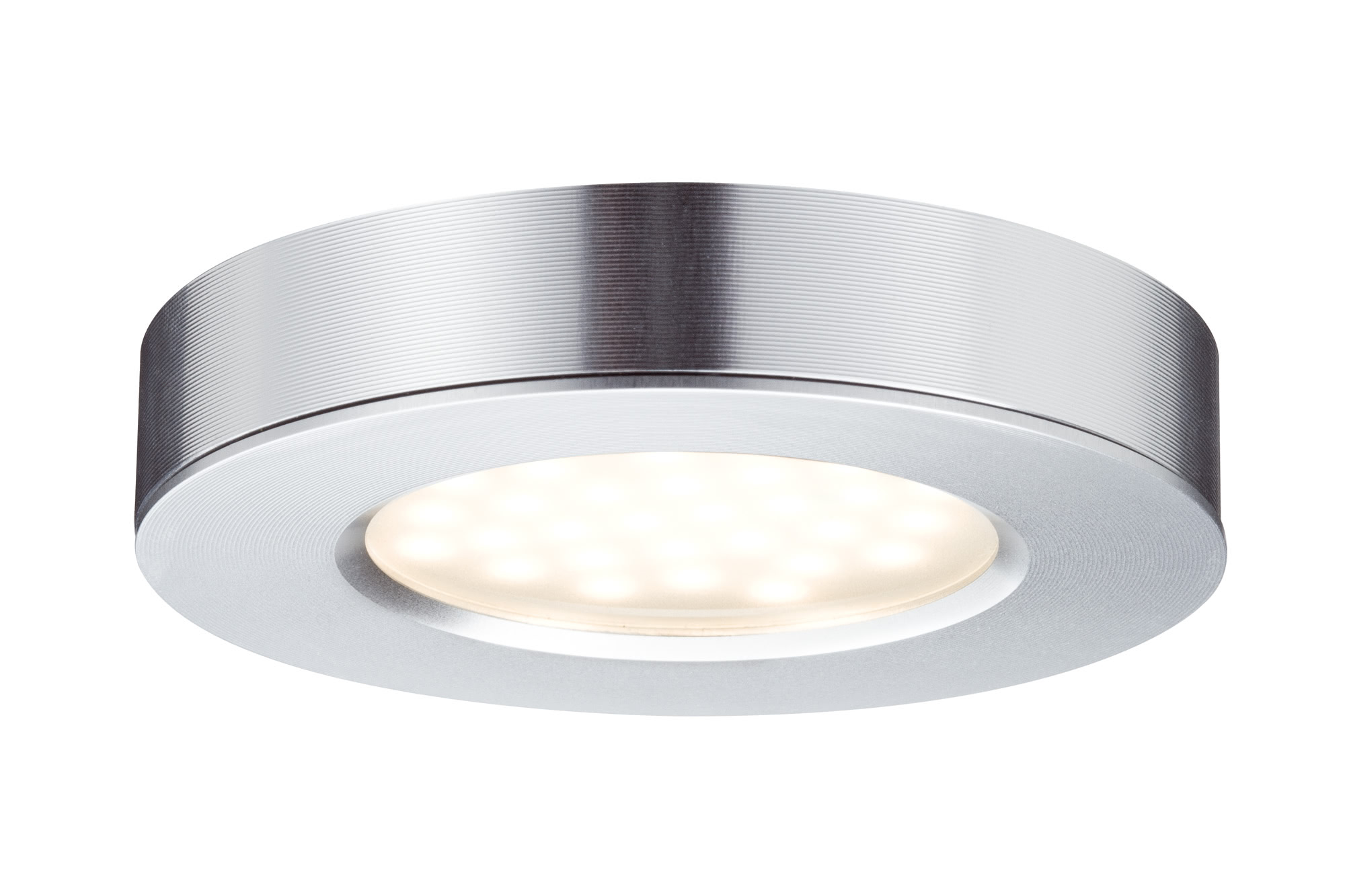

The right choice for display cases, furniture and the like: The furniture recessed lighting set Micro Line Platy LED can be used as a recessed light as well as a surface-mounted light, however you like. Even the recessed installation is compact; the super-flat lamp with a height of 15 mm does not require much space and is ideal for applications such as under-cabinet lighting for work surfaces.

  ARTICLE    93547 ( 935.47 )
  EAN          0
  ⌀    70 mm
  Anzahl BestГјckung    3x
  Ausstrahlwinkel    180 В°
  Beam angle    180 В°
  Bemessungs-/Nutzlichtstrom    244 lm
  Bemessungslebensdauer    20000 h
  Bemessungsleistung    3 W
  BestГјckung    3 W
  Colour    Aluminium
  Dimensions (Height x Width x Depth)    H: 14 mm
  Dimmable    No
  Dimmbar    Nein
  Electronic ballast 30,000h    Round
  Farbe    Alu
  Farbtemperatur    2700 K, 2.700 K
  Form    Rund
  Halbwertswinkel    180 В°
  Height    14 mm
  Inclusive lamp    Yes
  Inklusive Leuchtmittel    Yes
  Installation site    Installation on cabinet
  Installation site (recommendation)    Installation on cabinet
  Lebensdauer    20.000 h
  MM symbol    MM symbol
  MM-Zeichen    MM-Zeichen
  Material    Metal
  Montageort Empfehlung    Montage auf Schrank
  Mounting depth    15 mm
  Mounting hole    66 mm
  Nennlichtstrom (Lumen)    244 lm
  Number of component parts    3x
  Operating voltage    230 V
  Power consumption    12,2 W
  Protection class    Protection class II
  Rated life time    20000 h
  Rated luminous flux (Lumen)    244 lm
  Rated power    3 W
  Schutzklasse    Schutzklasse II
  Spannung    230 V
  Technik    LED
  Technique    LED
  Technology    LED
  Trafoleistung    12 VA
  Transformer depth    122 mm
  Transformer height    20 mm
  Transformer power    12 VA
  Transformer width    35 mm
  WEEE-Reg.-No    DE 39236390
  ZГјndzeit <    0,0 s
  Aufgenommene Leistung    12,2 W
  Color    Alu
  Color temp.    2700 K
  Component parts    3 W
  Depth of hollow wall    15 mm
  Life    20.000 h
  Lifetime    20.000 h
  Marketing type    Set
  Mit Steckverbinder    Mit Steckverbinder
  Plug-and-socket connector    Plug-and-socket connector
  Rated beam angle    180 В°
  Starting time <    0,0 s
  Useful luminous flux    244 lm
  Watt    Incl. 3x3 W
